Learn about the structural engineering and heavy equipment achievements that went into Abu Dhabi's newest cultural masterpiece. This blog highlights the use of mega-cranes and specialized earthmoving vehicles, as well as advanced BIM modelling, to bring the iconic falcon-winged thermal towers at the museum to life.
The skyline of Abu Dhabi's Saadiyat Cultural District has proudly introduced a stunning creation that seamlessly fuses centuries-old traditions with the forefront of modern engineering. This remarkable structure serves as a tribute to the late Sheikh Zayed bin Sultan Al Nahyan, the UAE's founding father, who had a profound appreciation for history, nature, and the preservation of culture. UAE National Day: Honouring Heritage While Building the Future
For enthusiasts of heavy machinery, construction experts, and civil engineers around the globe, this undertaking signifies much more than just an artistic venue. It embodies an extraordinary achievement in intricate geometry, substantial lifting capabilities, and detailed earthworks that challenge the limits of what modern construction equipment can accomplish on a sensitive coastal site.
Realizing this eagerly awaited national landmark demanded an exceptional partnership between the visionary architects at Foster + Partners and top-tier construction engineering teams. The structure’s foundation is harmoniously incorporated into a vast, artificially created hill that reflects the natural desert landscape of the UAE.
This design choice enabled construction teams to secure the building deeply into the island’s earth while harnessing the natural thermal qualities of the ground to keep the interior cool during the harsh Arabian heat.
Every stage of construction necessitated utmost engineering accuracy, heavily relying on advanced Building Information Modelling (BIM) to manage complex weight distributions before any steel components were manufactured. The outer facade is crafted from a specially engineered warm-white concrete blended with local crushed marble, ensuring that it complements the distinctive hue of Saadiyat Island’s sands.
This combination of material science and engineering ensures that the museum appears as a natural extension of its environment, paying homage to the landscape that has shaped Emirati history.

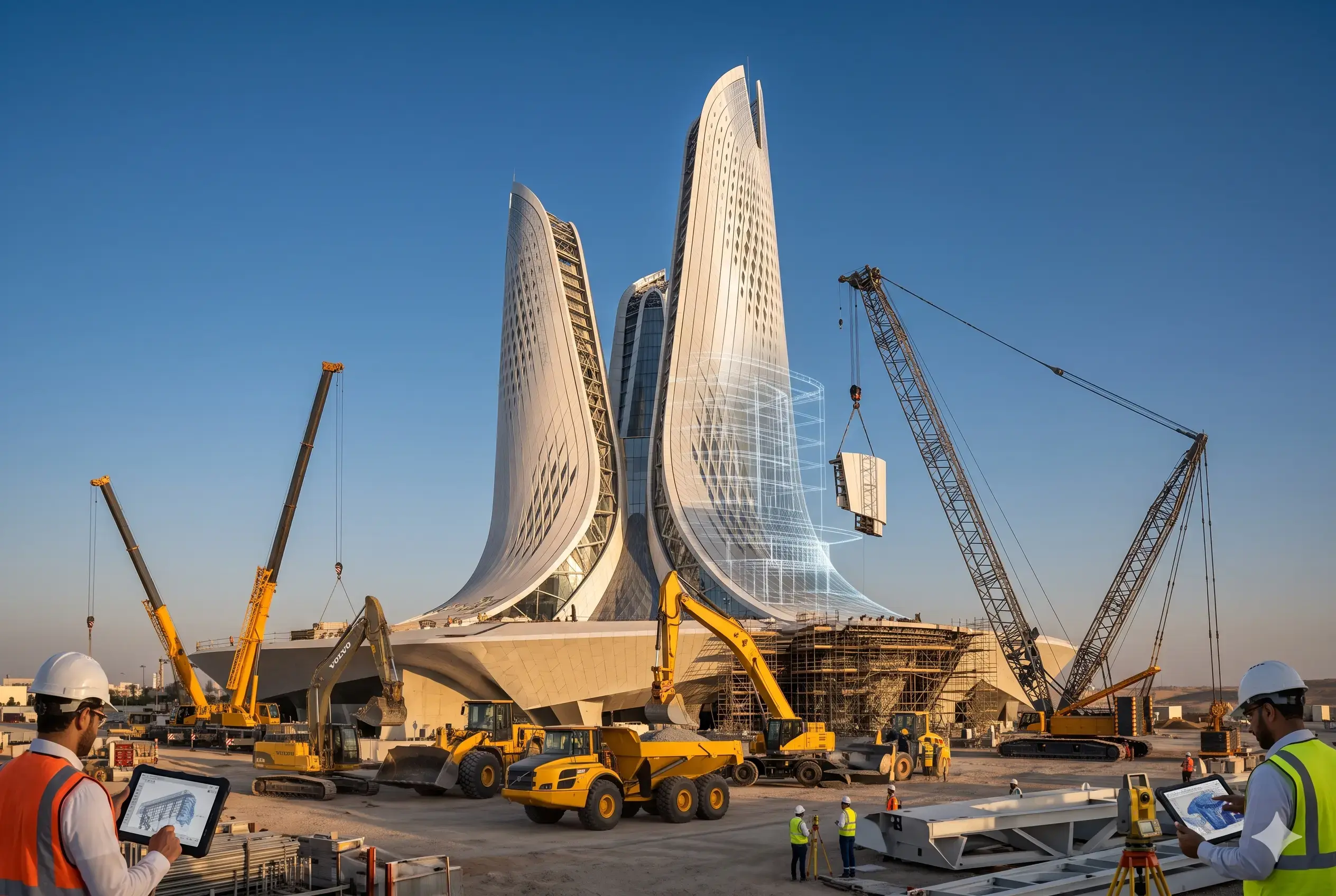

One of the standout logistic achievements of the entire endeavor was the secure assembly and placement of the enormous pod-shaped galleries, each weighing an impressive 500 tons, suspended over a grand, skylit central lobby known as Al Liwan. To manage such a challenging lift, engineers utilized some of the most powerful crawler cranes available on the global market.
The crane operators strategically collaborated with sophisticated digital monitoring systems to lift and accurately position each massive pod within deep concrete ring beams, ensuring stability beneath the extending steel wings. This elaborate rigging process necessitated optimal environmental conditions, skilled operators, and complete structural integrity to avoid any shifts during the lift. The successful installation of these suspended gallery pods underscored the crucial role that high-capacity mega-cranes play in realizing the most ambitious and intricate architectural projects.
Towering above the central concrete base are five sleek steel wings that reach up to 130 meters, designed to mimic the outstretched wingtips of a falcon. These impressive structures were constructed using over 13,000 tons of specially treated architectural steel, which required impeccable welding and intricate integration with curved glass facades. Beyond aesthetics, these wings are functional thermal chimneys that enhance passive ventilation throughout the building.
As sunlight warms the exterior steel plates, a natural upward airflow, or stack effect, is generated inside the museum. Vents positioned at the tops of the wings exploit negative pressure on the leeward side of the building to draw hot air out, while fresh, cooler air is drawn into the lower levels through underground channels that utilize the earth’s naturally cooler temperatures. This blend of ancient Arabic wind-tower techniques with modern steel engineering establishes a new standard for sustainable public infrastructure.
In addition to the elaborate steel and concrete work on the main structure, an extensive array of earthmoving machinery was employed to shape the vast surrounding area. Heavy excavators, articulated dump trucks, bulldozers, and high-capacity wheel loaders operated continuously to meticulously sculpt the 40,250 square meters of landscape. Crews moved hundreds of thousands of tons of earth to create tiered mounds, build over two kilometers of pedestrian pathways, and prepare the grounds for the expansive Al Masar Garden.
This landscape showcases a sophisticated irrigation system inspired by the "falaj," a traditional water-harvesting method used in the region for centuries. Heavy grading equipment ensured that water channels were precisely angled for optimal efficiency, supporting the growth of over 900 unique regional plants and trees. The considerable volume of earth moved throughout this project exemplifies how heavy machinery forms the foundation for preserving cultural stories, transforming raw coastal land into an engaging historical experience.
The completion of the Zayed National Museum marks a remarkable achievement in contemporary architecture and heavy engineering, demonstrating that it is possible to forge a nation’s future while remaining connected to its historical roots. With the help of mega-cranes, intelligent earth-moving machinery, and innovative steel construction, this cultural landmark is poised to welcome millions of visitors to explore the story of the UAE. It stands as a lasting tribute to Sheikh Zayed’s profound respect for nature and sustainability, brought to life through the might, precision, and innovation of heavy machinery.
What was the most significant machinery challenge during the museum's construction?
The most notable challenge was using one of the largest crawler cranes worldwide to lift and accurately position four 500-ton suspended gallery pods into their concrete support beams.
How do the falcon-wing structures serve as sustainable thermal chimneys?
As the sun warms the wings’ steel surfaces, the heated air naturally rises and escapes through vent openings at the tops of the wings. This passive stack effect allows cooler air to be funneled from underground pipes, effectively ventilating the building.
What quantity of steel was utilized for the iconic wings of the museum?
The five aerodynamic wings required over 13,000 tons of specialized architectural steel, which was meticulously welded and integrated with advanced glass facades.
Who designed the architecture of this cultural landmark?
The Zayed National Museum was crafted by the prestigious architectural firm Foster + Partners, under the guidance of Lord Norman Foster, who seamlessly combined modern sustainability with traditional Emirati aesthetics.
What heavy machinery was involved in shaping the surrounding landscapes and gardens?
An extensive fleet of heavy earthmoving machinery — including large excavators, bulldozers, wheel loaders, and articulated dump trucks — was used to create the artificial hill and grade the 40,250 square meter Al Masar Garden.
