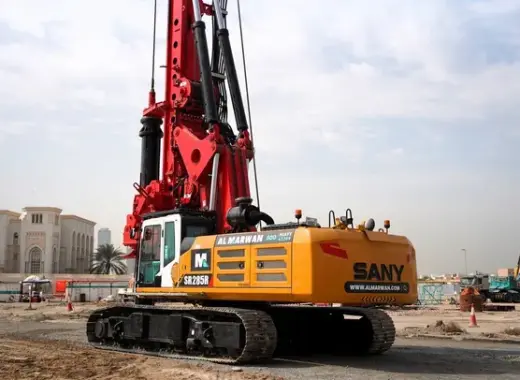

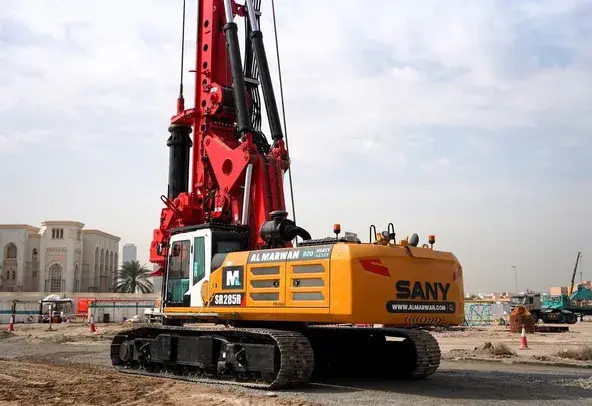

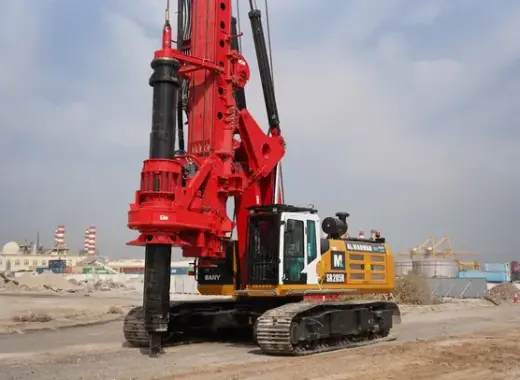

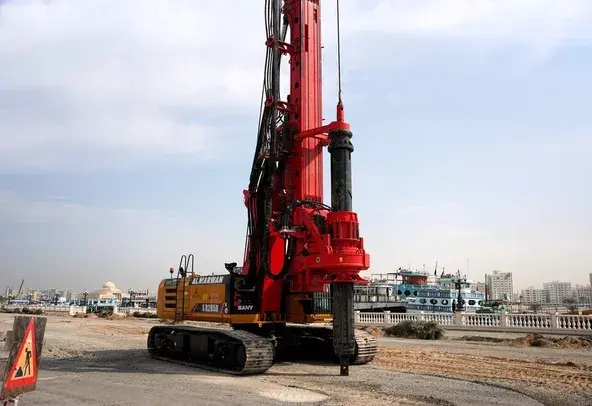

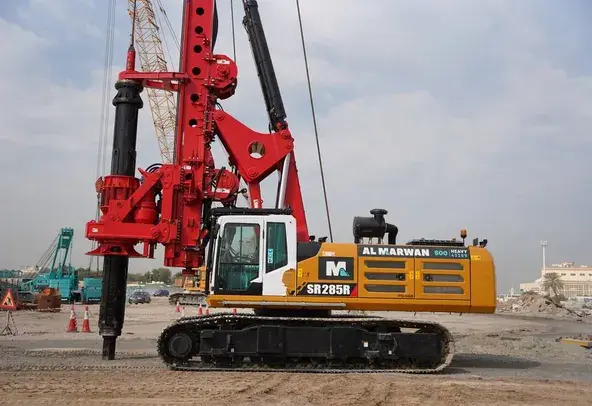

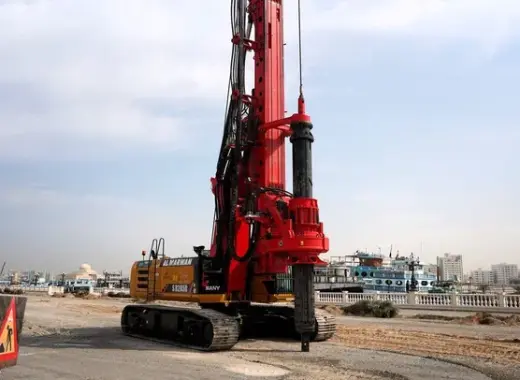

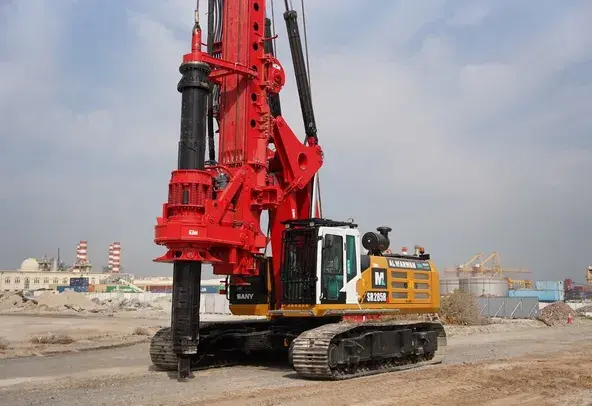

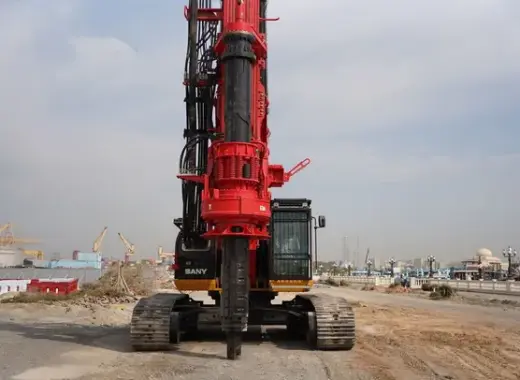

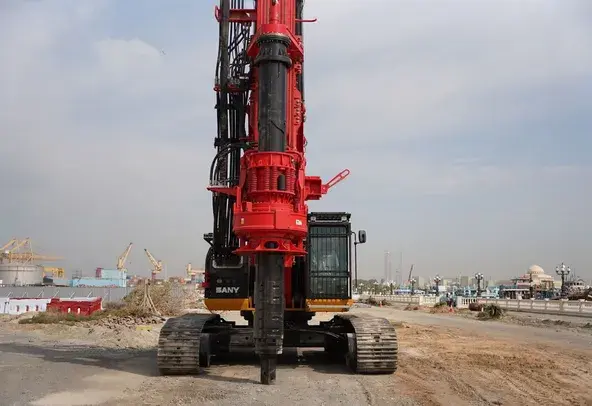

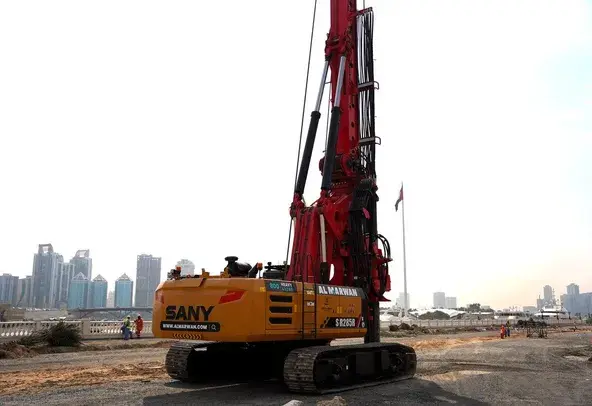

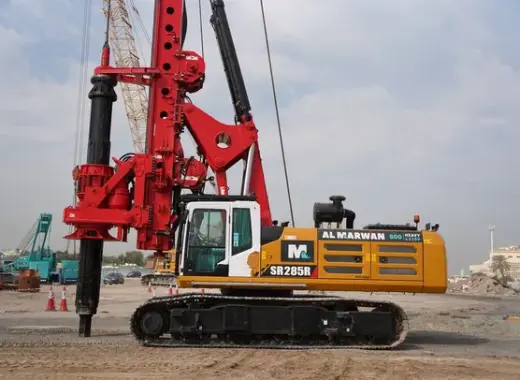

The foundations of skyscrapers and massive bridges must be anchored deeply into the ground to ensure stability. Rotary Drilling Rig, 105 ton is an elite piece of heavy foundation engineering equipment designed to handle such massive civil projects. These heavy-duty piling machines, which weigh approximately 105,000 kgs when operating, provide the crushing force and rotational torque needed to bore through dense soils and hard rock layers.
The design and engineering of the 105-ton drilling rig is based on structural stability, hydraulic efficiency and mechanical endurance. The machine's base is built around a heavy-duty, extendable crawler chassis. This chassis expands in order to provide a large, solid footprint during intensive drilling operations.
These massive rigs use turbocharged diesel engines with low emissions, connected to hydraulic systems that have multiple pumps. These core components include a vertical mast with a high-capacity power swivel or rotary drive that transfers hundreds of Kilonewton meters of torque to the drill string. These machines are equipped with multi-stage telescoping kelly bars and specialized drilling tools that can drill holes up to extreme depths.
Rotary Drilling Rig, 105 ton: Applications and uses
Rotary Drilling Rig, 105 ton size, is a valuable asset in civil engineering and infrastructure. Its immense weight and torque capacity make it an essential tool for major projects. These machines are used to create large cast-in-place concrete piles because they can cut through bedrock, cobbles and wet soils.
This equipment is used in a variety of industrial applications, including:
- High Rise Building Foundations: Used for boring massive, deep foundation piles to support the structural load of modern skyscrapers.
- Highway and Bridge Infrastructure: Essential for drilling large diameter pier foundations across riverbeds and valleys, as well as along the coasts of oceans and rivers to secure highways and viaducts.
- Subway and Transit Tunneling: Widely used to create robust secant piling walls and contiguous retention barriers that prevent soil from collapsing during underground station excavations.
- Port and Maritime Marine Projects Ideal to install heavy-duty anchoring pilings along shipping docks and terminals, wharves and large coastal flood defence barriers.
These high-capacity drilling rigs are ideal for stabilizing heavy soil structures, whether they're working in a crowded urban site or on a remote project to expand a bridge.
The Benefits of Rotary Drilling Rig, 105 ton
The use of a Rotary Drilling Rig, 105 ton in a foundation construction fleet, can offer significant operational, safety and productivity benefits over lighter drilling equipment.
- Immense Torque Rotational: Heavy-duty rotary heads provide extreme drilling torque, allowing crews the ability to drill through tough granite, reinforced rock, shale and sandstone layers.
- Outstanding Depth and Diameter Capabilities: These rigs have been engineered to handle large augers and core barrels as well as long telescoping kelly bars in order to meet deep-piling requirements.
- Advanced Intelligent Control Systems Modern, 105-ton rigs come with digital touchscreens and automatic mast leveling. They also have load-sensing hydrostatics as well as real-time monitoring of verticality to ensure that they are perfectly straight.
- Excellent Jobsite Manoeuvrability: These rigs can climb steep slopes and travel on soft construction mud. They also have the ability to position themselves precisely.
- Rapid Transport Setup: These large rigs are designed with innovative self-assembling telescopic masts and counterweights that can be easily removed. They can then be disassembled, transported in standard trailers and quickly reassembled.
Conclusion of Rotary Drilling Rig, 105 ton
Rotary Drilling Rig, 105 ton, remains the gold standard in heavy foundation engineering throughout the construction industry. These machines are able to drill deep into difficult terrain by combining large structural counterweights with high-torque hydraulic drives and electronic stabilization systems. If your next engineering project involves securing an urban skyscraper with multiple stories, building a river bridge pier or creating a transit hub underground, then a 105-ton rotary drilling rig will provide the power, precision and reliability that your infrastructure requires.
