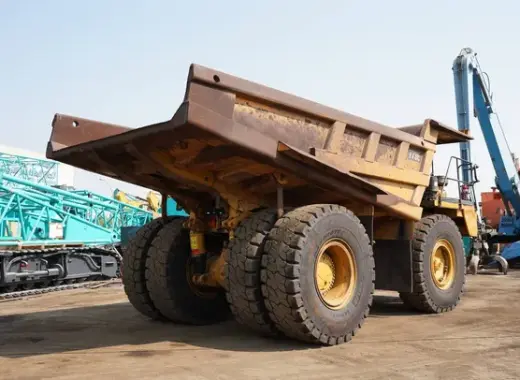

55-Ton Rigid Dump Trucks: The Complete Mining & Heavy Hauling Guide
In mass excavation and mining, operational success relies on moving bulk materials quickly at the lowest cost per ton. While articulated trucks excel in soft mud, 55-ton rigid dump trucks set the standard for high-speed hauling on established haul roads. Weighing roughly 90,000 lbs empty and carrying an extra 110,000 lbs at full capacity, this truck delivers exceptional structural strength and maneuverability.
Technical Engineering and Structural Design
A 55-ton rigid dump truck's design focuses on a solid, heavy-duty box-section frame built to endure constant stress:
- Unbreakable Rigid Frame: Unlike articulated trucks that bend at a central hitch, a rigid hauler uses high-strength steel castings in key stress areas. This design easily absorbs the heavy impact of large excavators dropping tons of blasted rock into the dump bed.
- High-Torque Powertrain: A turbocharged diesel engine paired with an electronic planetary transmission powers the truck. This setup maintains high travel speeds on steep, loaded haul road inclines without losing momentum.
- Traction & Safety Systems: Advanced oil-cooled multi-disc brakes provide fade-resistant retarding during continuous downhill haul cycles, keeping the truck safe and under control.
Primary Uses and Applications
The 55-ton rigid dump truck is a specialized asset engineered for high-output, high-cycle environments:
- Mid-Sized Open-Pit Mining: Serves as a core fleet asset in surface mining for iron ore, coal, copper, and gold. Operating directly under large excavators, these trucks haul blasted rock and overburden from deep pits to processing plants.
- Commercial Aggregate Quarries: Moves thousands of tons of crushed limestone, granite, and gravel per day from the active quarry face straight to primary crushers.
- Major Infrastructure & Dam Construction: Hauls massive volumes of rock and clay for large civil engineering projects, including airport runways, dams, and highway cuttings.
- Overburden Removal & Land Reclamation: Efficiently clears topsoil and weathered rock layers to prepare mining sites, while also returning clean earth to restore landscapes during site reclamation.
Key Operational and Financial Benefits
- High Hourly Tonnage: Moves significantly more material per shift than smaller articulated trucks, reducing total project timelines.
- Long Frame Lifespan: Eliminating a central articulation joint reduces frame twist and structural fatigue, allowing these trucks to operate for tens of thousands of hours.
- Optimized Fuel Management: Features lock-up torque converters and eco-shift modes to ensure the engine uses only the fuel needed for each payload ton.
- Integrated Payload Weighing: Onboard sensors measure suspension compression to give real-time weight data, preventing both under-loading and tire-damaging over-loading.
- Controlled Downhill Retardation: Hydraulic retarders maintain safe downhill speeds without wearing out the main service brakes.
Overview
The 55-ton rigid dump truck remains a vital asset across the global mining, quarrying, and heavy civil construction sectors. By pairing an unbreakable structural chassis with high travel speeds and smart payload monitoring, this machine solves high-volume material transport challenges. Whether feeding an aggregate crusher or negotiating steep open-pit ramps, a 55-ton rigid truck keeps operations safe, efficient, and profitable.
Frequently Asked Questions
1. What popular truck models belong to the 55-ton rigid dump truck class?

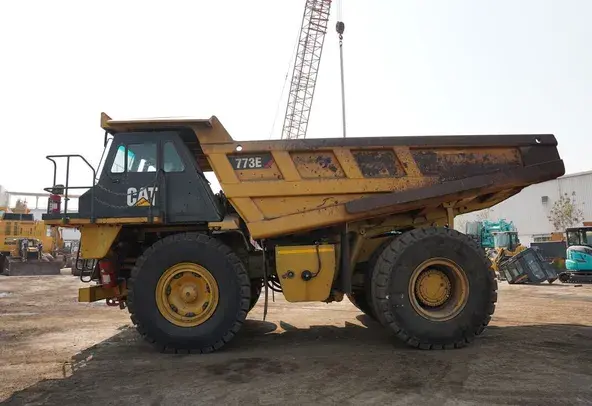

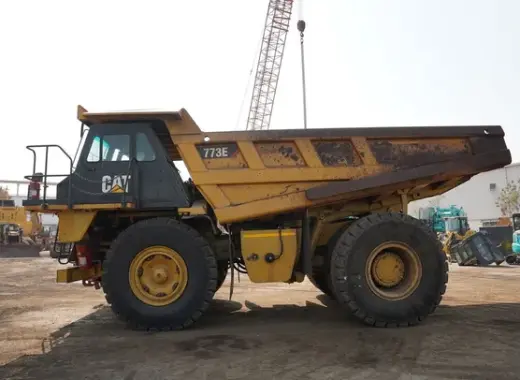

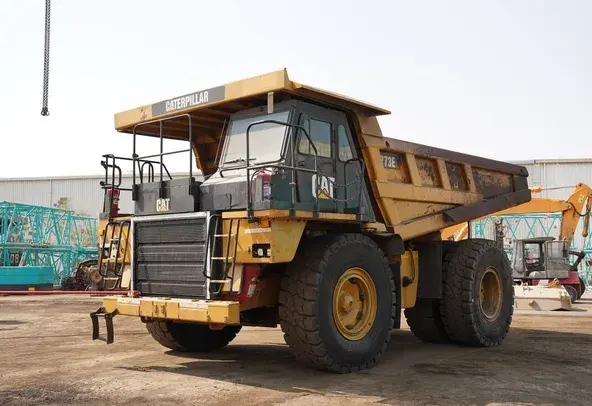

Key models in this 50- to 60-ton payload category include the Caterpillar 773 (such as the CAT 773G), Komatsu HD405, and Hitachi EH1100.
2. What is the difference between a rigid dump truck and an articulated dump truck (ADT)?
A rigid dump truck features a single fixed frame designed for high speeds on firm, well-maintained haul roads. An articulated dump truck features an oscillating hinge joint between the cab and body, providing superior traction on soft, muddy, or uneven ground.
3. What is the average engine horsepower for a 55-ton rigid dump truck?
A 55-ton rigid dump truck is typically powered by a heavy-duty industrial diesel engine producing between 700 and 780 net horsepower.
4. How many passes does it take to load a 55-ton rigid dump truck?
A 55-ton rigid truck is typically pass-matched to fill in 3 to 5 quick cycles when paired with a 35- to 50-ton excavator or a 34-ton wheel loader.
5. How are 55-ton rigid dump trucks transported between job sites?
Because of highway weight and width limits, a 55-ton rigid truck cannot travel on public roads. It is loaded onto a multi-axle heavy-haul trailer, often with the dump body or wheels removed to meet road transport limits.
