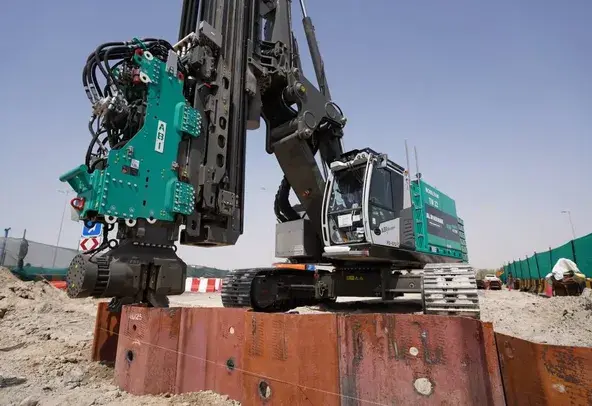

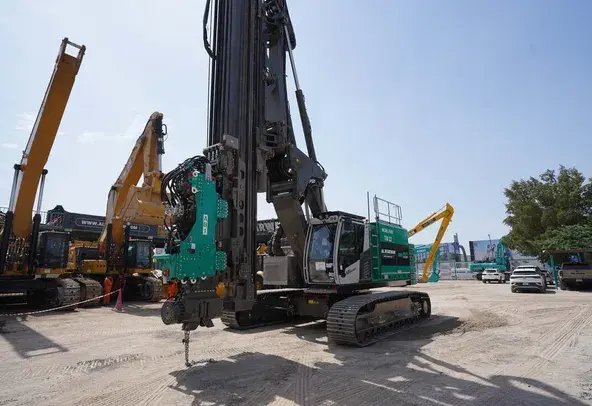

To build stable foundations, specialized machines are needed that can drive deep into the ground to install structural piles. The Piling Rigs, 17-22 meters class, represent a versatile medium-range foundation engineering tool. These balanced rigs can reach maximum depths of 17 to 22 meters and are designed to provide the crowd force and torque required for medium-sized projects, without the large, restricted footprint of heavy-duty macro rigs weighing 100 tons.

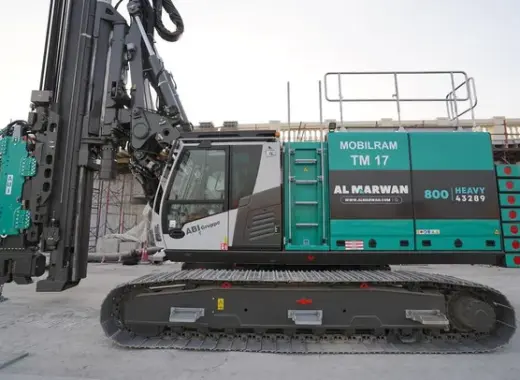

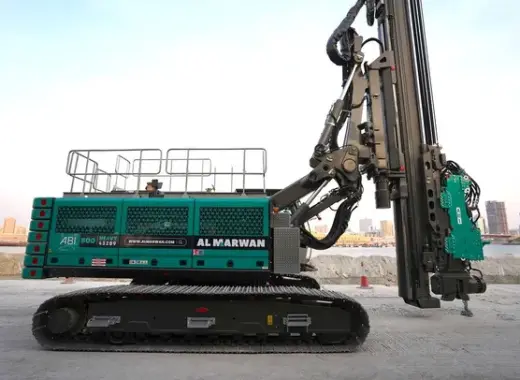

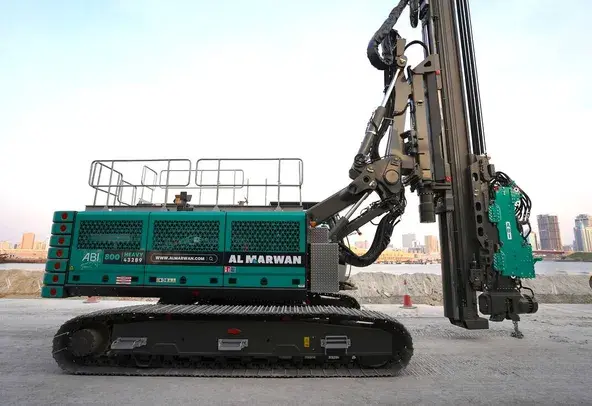

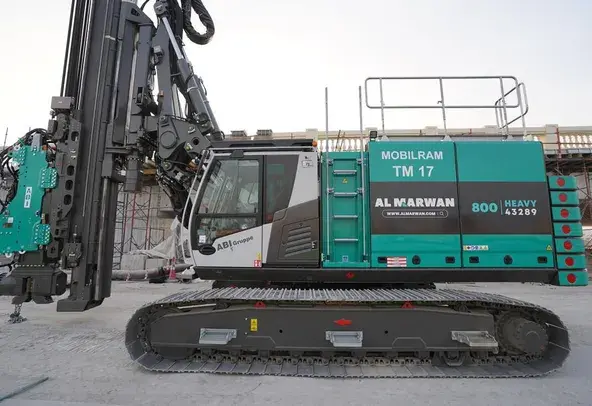

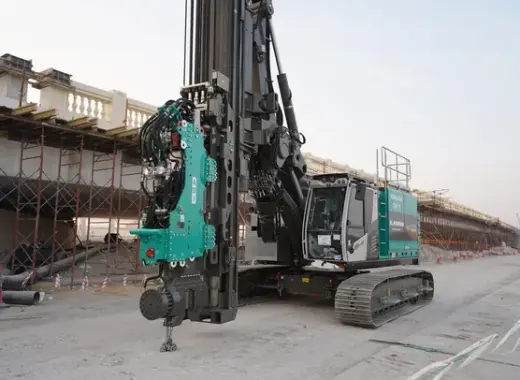

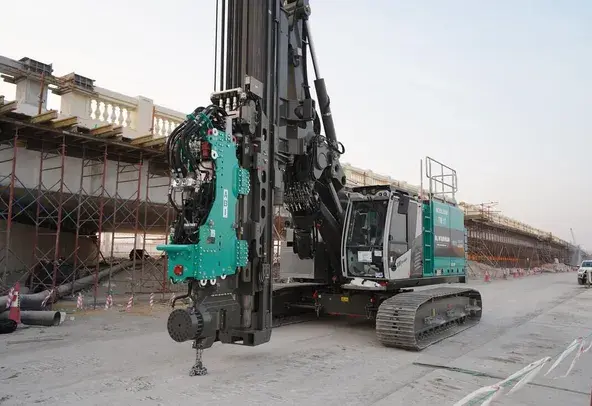

Piling Rigs, 17-22 meters, are designed and engineered to be agile, with hydraulic optimization and rapid deployment. The framework is typically built around a heavy-duty, expandable crawler chassis that provides an incredibly stable, low-center-of-gravity footprint during rigorous drilling operations.
These units are powered by high-efficiency turbocharged diesel engine systems paired with sophisticated hydraulic multi-pump systems. The vertical mast is used to guide a large-capacity drive head, which transfers rotational forces directly down the drill shaft. These machines use multi-stage telescoping kelly bars in conjunction with core barrels or specialized augers to bore perfectly vertical foundation shafts into diverse soil strata.
Piling Rigs, 17-22 meters: Applications and Uses
The combination of mid-scale vertical range and compact transit dimensions makes Piling Rigs, 17-22 meters models, indispensable in modern civil engineering sectors. These machines are ideal for light commercial and residential construction because they can easily maneuver in tight urban spaces.
Some common applications on the jobsite include:
- Urban Commercial & Residential Foundations: Widely used to bore foundation shafts in mid-rise apartment blocks, mixed-use commercial blocks, and large retail centres.
- Bridge Overpass Piers and Highway Expansions: Essential for drilling medium diameter support piles for highway extensions, rural bridges and elevated railway viaducts.

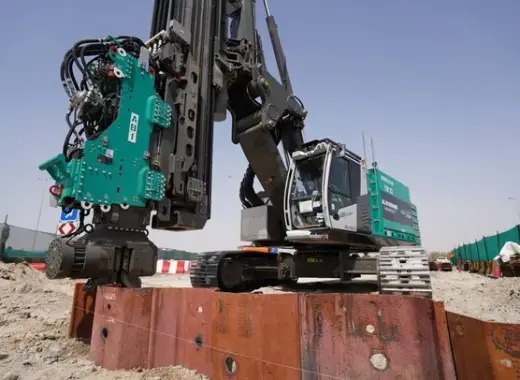

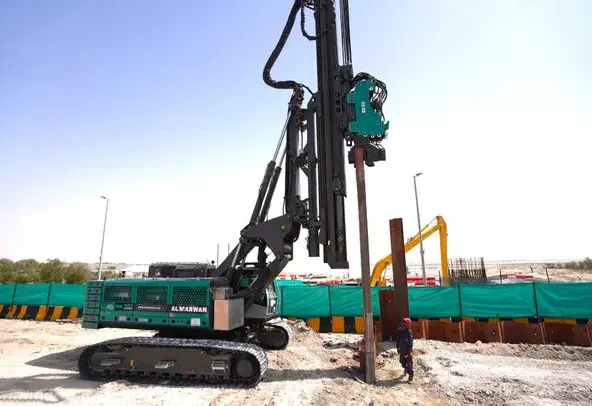

- Retaining Walls and Secant Piles: Widely used in urban areas with high population density to build contiguous piling walls that prevent soil shift during excavations of deep basements or underground parking.
- Industrial Plant Extensions: Ideal anchoring foundation pilings for heavy machinery bays and storage silos. Factory warehouse extensions may be difficult to accommodate if overhead space is limited.
These rigs can drill holes in any soil structure, whether they are drilling a slope on a rural road or navigating through a muddy construction area.
The Benefits of Piling Rigs, 17-22 meters
The addition of a Piling Rigs, 17-22 meters to a fleet for foundation construction offers significant operational, financial and logistical benefits over drilling equipment that is lighter or too bulky.
- Excellent Workspace Manoeuvrability: The compact physical profile of the crawler tracks and their retractable crawler track allows operators to position rigs in tight alleys safely and close to existing structures, as well as on soft construction terrain.
- High Efficiency Operation: Equipped with robust rotary heads, these medium-sized rigs deliver high torque output to penetrate clay, gravel and shale quickly.

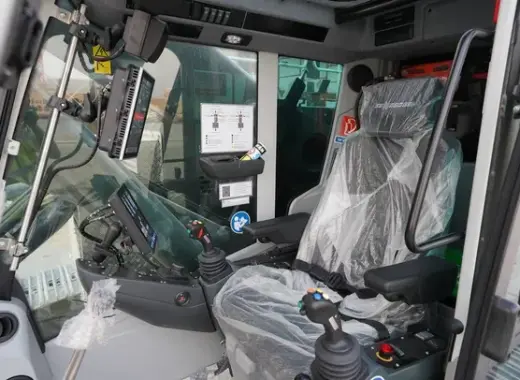

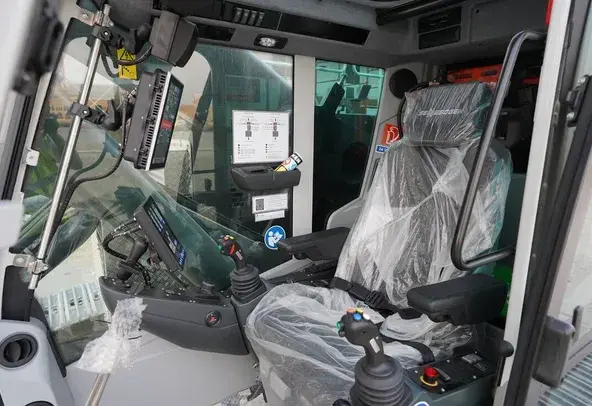

- Smart Digital Control Integration: Modern rigs of 17-22 meters feature advanced touchscreens and electronic depth monitoring in real time.
- Simple Transport and Fast Setup: These units are designed with integrated folding masts. They can be transported as a unit on low-loader trailers without the need for auxiliary cranes or extensive teardown.
- Low Environmental Disruption The highly optimized engines and sound-dampened enclosures produce low emissions and minimal noise, which is essential for projects in residential zones or near hospitals.
Conclusion of Piling Rigs, 17-22 meters
Piling Rigs, 17-22 meters segments, remain a cornerstone of global construction projects requiring precise foundation drilling in compact or difficult environments. These machines simplify mid-range deep pile drilling by combining a mobile crawler chassis, high torque hydraulic power and intelligent electronic monitoring.
If your next engineering project is to build a multi-story residence complex, establish stable highway bridge piers or create a robust underground retaining wall, choosing a 17-22-meter piling rig will ensure the uncompromising agility and drilling precision your jobsite requires.
