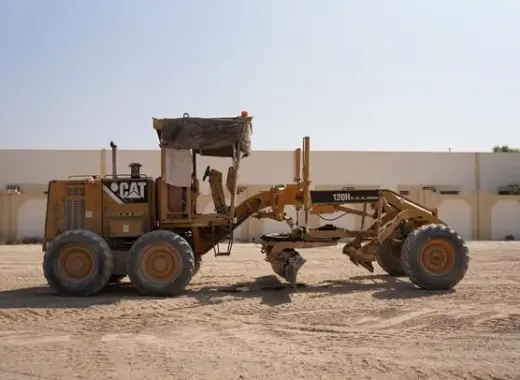

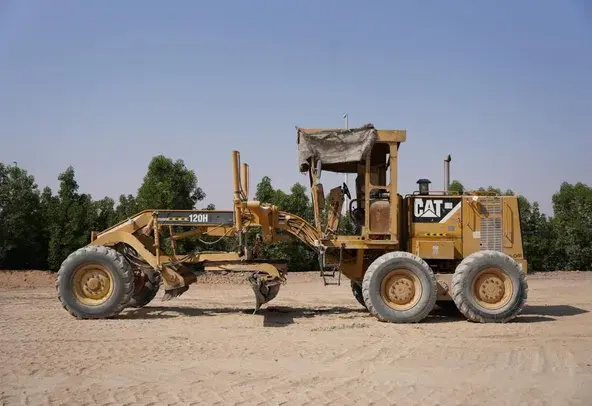

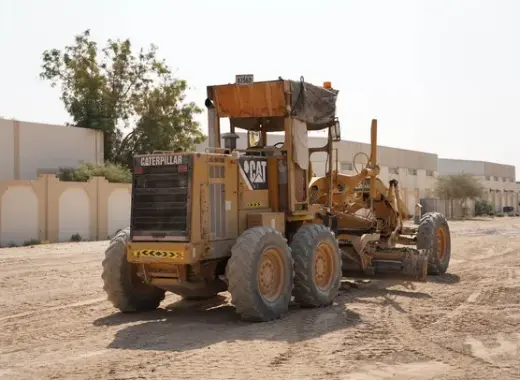

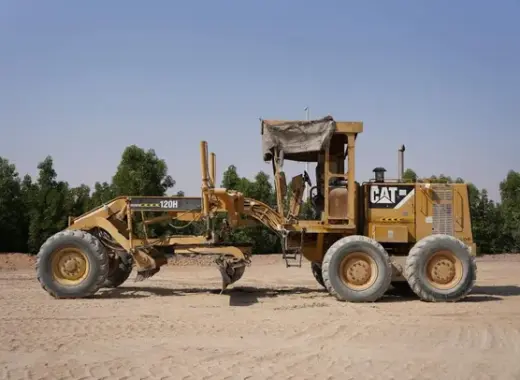

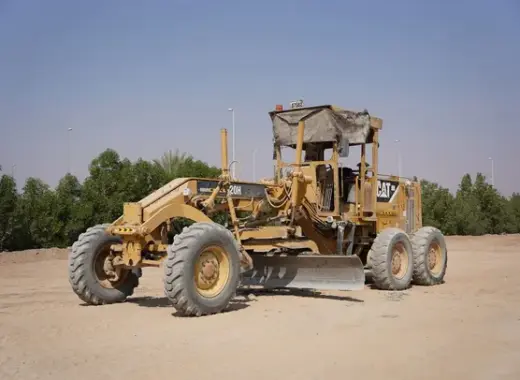

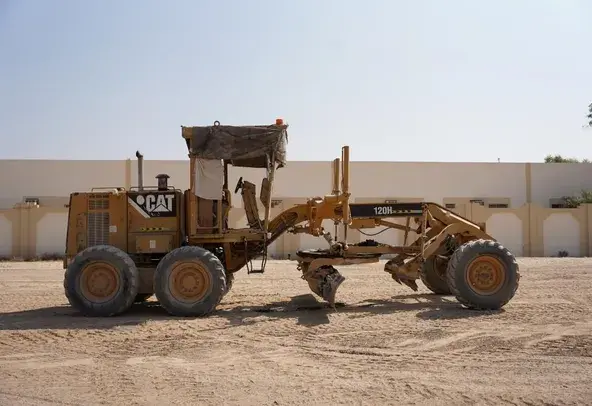

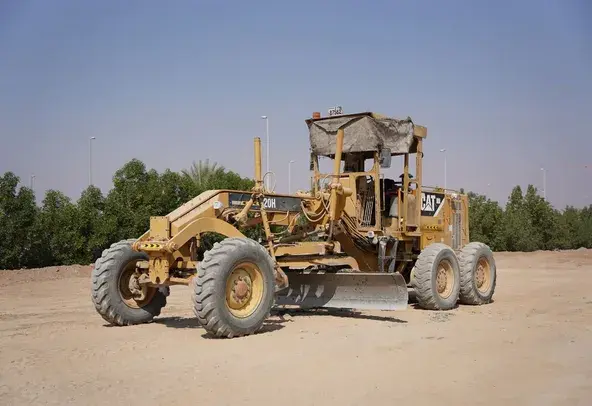

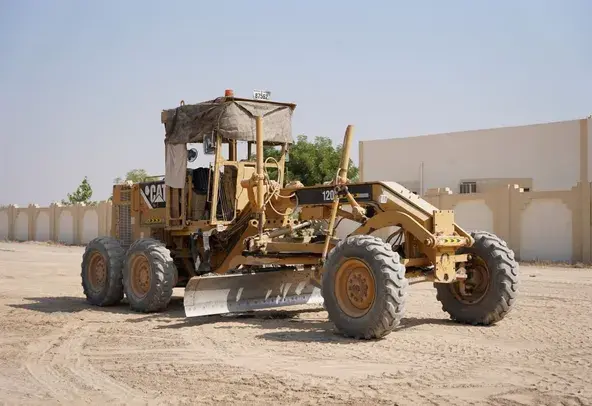

15-Ton Motor Graders: The Precision Roadbuilding & Surface Shaping Guide

Specialized equipment is essential in earthmoving and road construction to achieve a precisely flat, angled, or compacted surface. While large dozers excel at moving bulk earth, 15-ton motor graders (weighing roughly 30,000 lbs) serve as the ultimate tool for precise surface shaping. Representing the most popular weight category in the industry, this medium-class grader provides the ideal balance of millimeter grading precision and strong drawbar pull.

Technical Engineering & Structural Design

A 15-ton motor grader's structural engineering differs significantly from other heavy earthmovers:

  • High-Arch Articulated Chassis: Features a long wheelbase that maximizes the distance between the rear tandem drive axles and the front steering wheels. The main moldboard (grading blade) and circle drive mechanism hang directly below this high-arch frame, bridging minor ground dips to deliver a clean cut.
  • Responsive Powertrain: Powered by a turbocharged diesel engine paired with an electronic power management system. The ECU dynamically adjusts horsepower output based on blade resistance, maintaining smooth momentum without stalling.
  • Ergonomic Dual-Joystick Controls: Advanced dual-joystick controls integrated into the armrests replace traditional multi-lever consoles. This ergonomic design reduces operator hand and wrist movements by up to 78%, minimizing fatigue during long shifts.

Primary Applications and Industry Uses

Perhaps the most versatile machine in a municipal or commercial fleet, a 15-ton motor grader handles everything from fine finish grading to winter snow removal:

  • Road Base Preparation & Final Precision Grading: Levels and slopes aggregate bases before concrete or asphalt paving on highways, parking lots, and runways. Precision-cuts road crowns to direct rainwater off the surface and prevent structural failures.
  • V-Ditch Cutting & Bank Sloping: Uses aggressive blade tilt angles and side-shift capabilities to position the moldboard outside the wheel path. This allows operators to carve deep V-ditches and clean drainage slopes along rural roads and highways.
  • Quarry & Mine Haul Road Maintenance: Smooths dirt transport routes in active mining and quarry operations. Removing potholes and ruts keeps haul trucks traveling safely at high speeds while extending expensive tire life.
  • Heavy Snow & Ice Removal: Equips high-capacity front plows, wing blades, or mid-mount ice-breakers to clear deep snowdrifts and packed ice from secondary highways and municipal streets during winter.

Key Operational & Financial Benefits

  • Dual-Function Versatility: Performs both heavy rough grading and millimeter-accurate finish grading, eliminating the need to bring separate machines to the job site.
  • Easy Transport & Mobility: Unlike 20-ton+ mining graders, a 15-ton machine fits onto standard lowboy trailers without requiring oversized transport permits. Its articulated steering makes navigating tight urban job sites simple.
  • Factory 3D GPS Grade Control: Integrates with 3D GPS grade control systems to automate blade lift and tilt, reaching target grade elevations faster and with fewer passes.
  • Optional All-Wheel Drive (AWD): Available AWD models send independent torque to the front wheels, providing crucial extra traction when pushing heavy loads through loose sand, wet mud, or snow.
  • High Resale Value & Easy Maintenance: High demand across municipal and private sectors ensures strong resale value. Ground-level maintenance points make daily checks fast and straightforward.

Overview

The 15-ton motor grader remains an essential production asset for modern roadbuilding, municipal maintenance, and civil engineering teams. By combining heavy drawbar pull with digital hydraulic controls and a transport-friendly profile, this machine delivers the structural durability and precision needed to complete complex grading contracts on schedule and under budget.

Frequently Asked Questions

1. What popular motor grader models belong to the 15-ton weight class?

The most prominent models in this 14- to 16-ton size category include the Caterpillar 120 / 140 (and 140 GC), Komatsu GD655, John Deere 620G / 622G, and CASE 836C.

2. What is the standard blade (moldboard) size on a 15-ton motor grader?

A 15-ton motor grader typically comes equipped with a 12-foot (3.65-meter) or 14-foot (4.27-meter) heavy-duty moldboard featuring replaceable high-carbon steel cutting edges.

3. What is the difference between a rigid frame and an articulated frame motor grader?

Older graders used a single rigid frame. Modern 15-ton graders feature an articulated frame joint behind the cab that pivots up to 20 degrees left or right. This allows crab-steering to keep drive wheels on solid ground while offset-grading on steep slopes.

4. How does All-Wheel Drive (AWD) improve motor grader performance?

AWD uses hydrostatic front-wheel motors that engage automatically when rear wheels slip. This increases front-wheel pull force by up to 30%, keeping the front end from sliding sideways when grading heavy slopes or pushing deep snow.

5. How does 3D GPS technology work on a 15-ton motor grader?

GPS antennas mounted on the grader connect to 3D engineering blueprints. The system automatically adjusts the hydraulic cylinders controlling blade elevation and slope in real time, allowing operators to achieve final grade within millimeters.
