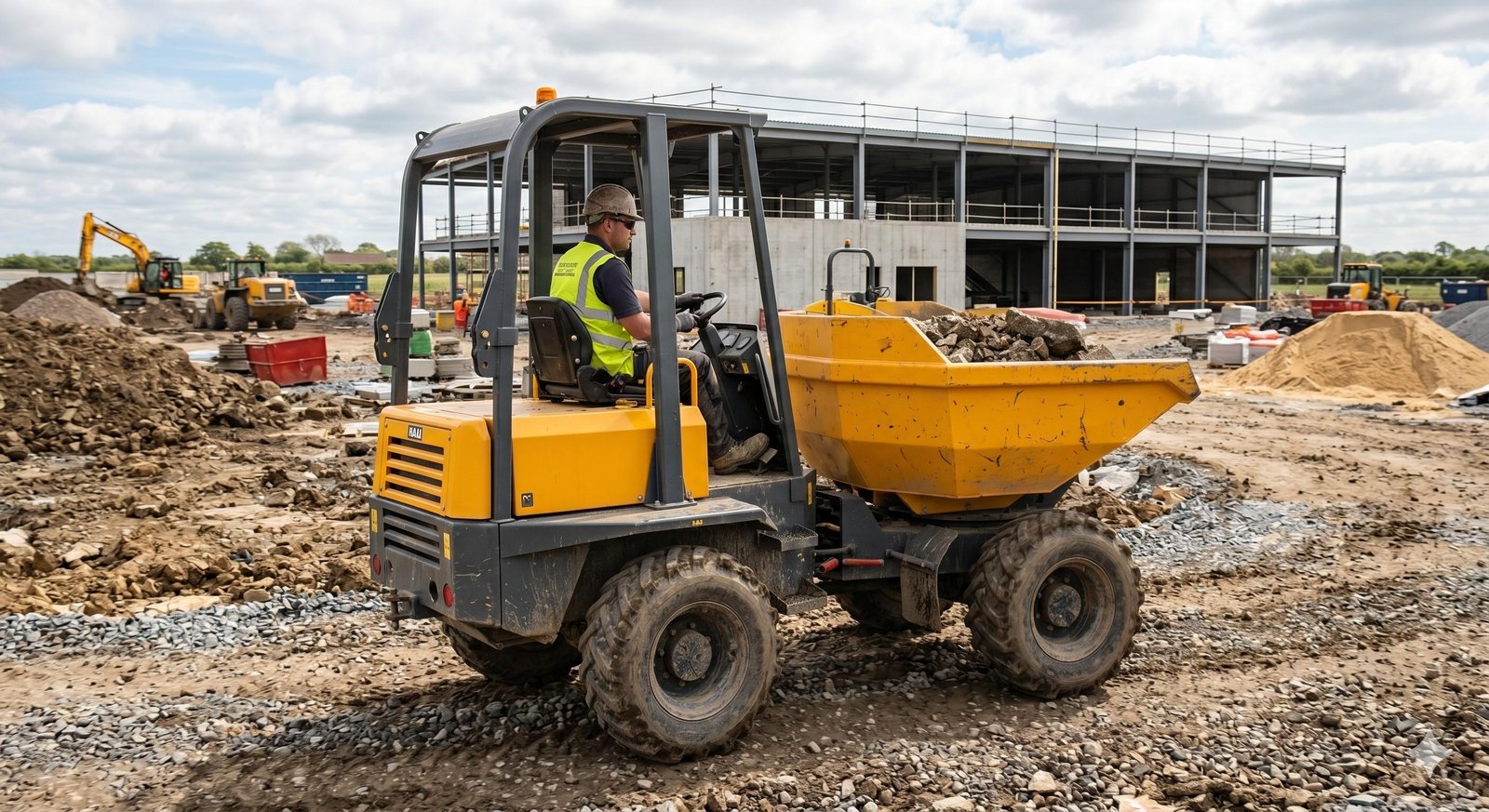

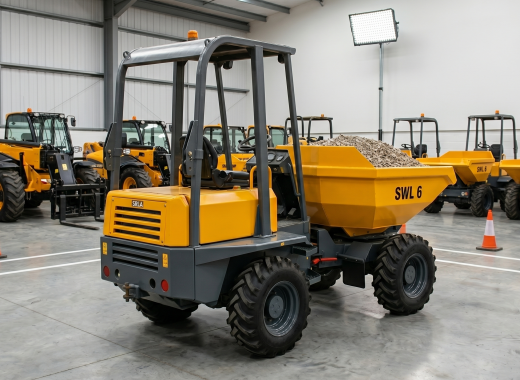

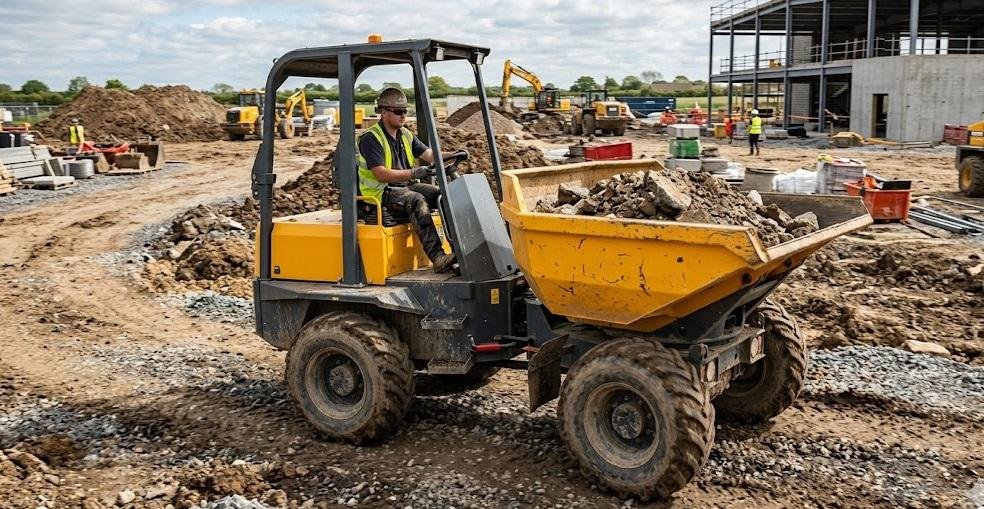

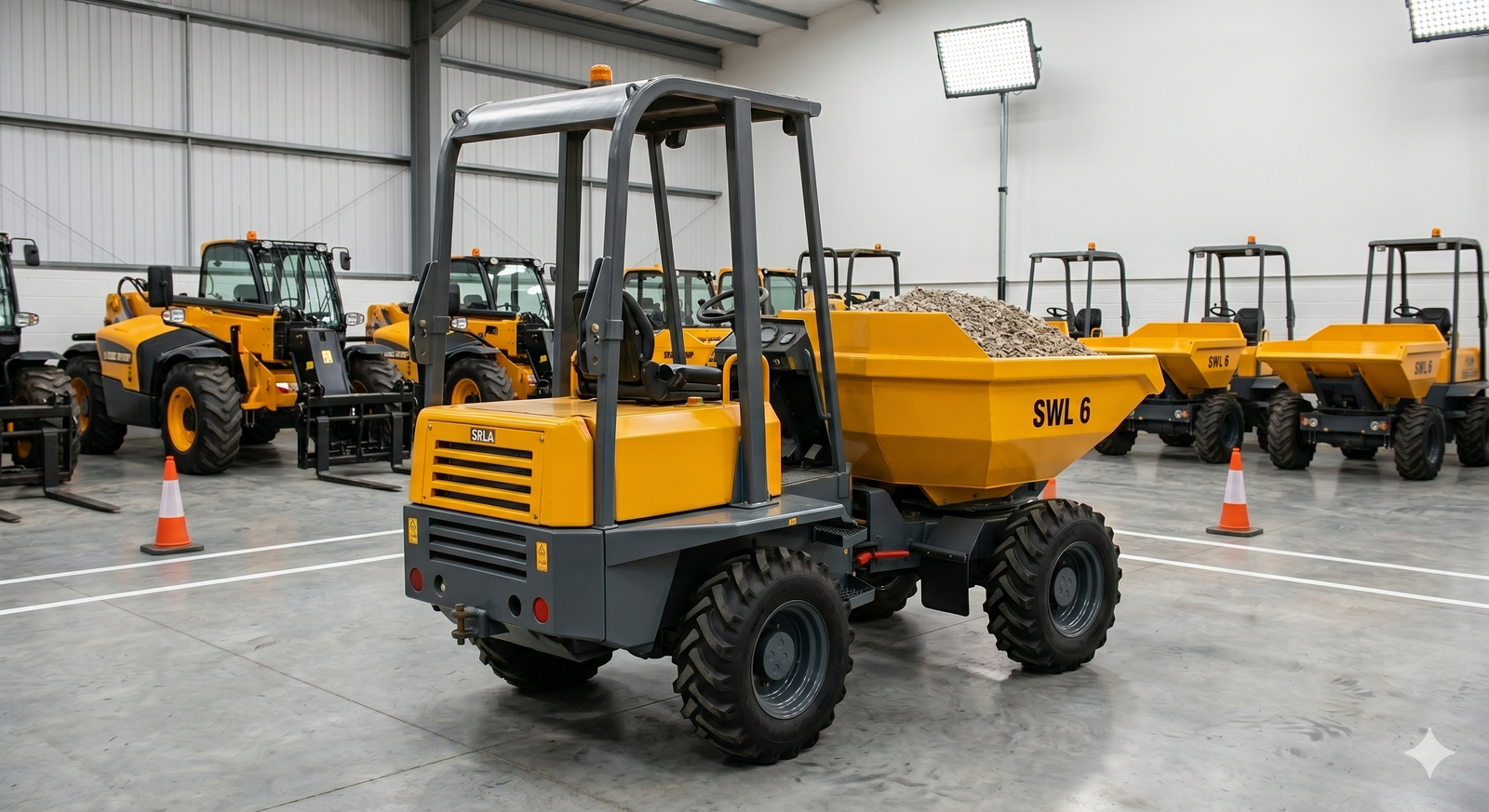

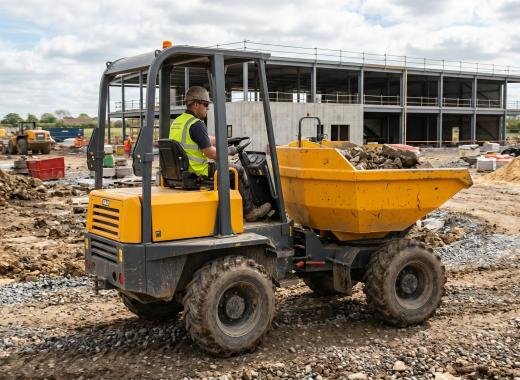

About the 6-Ton Articulated Mini Dumper

A major challenge on modern job sites is balancing high carrying capacity with tight maneuvering space. Standard wheelbarrows carry too little material to be efficient, but large haul trucks are far too big and heavy for tight areas.

The 6-ton articulated mini dumper solves this problem. Designed to carry up to 12,000 pounds (6 metric tons) of material, this mid-sized machine delivers the ideal balance of payload capacity, stability, and spatial agility for cramped, off-road conditions.

Smart Design & Engineering

What makes the 6-ton mini dumper special is its user-focused frame architecture, built from the ground up to maximize stability while keeping ground pressure low.

  • Articulated Steering: At the center of the machine is a heavy-duty swivel joint that divides the chassis into front and rear sections. Instead of turning just the front wheels, the entire frame bends to steer. This gives the dumper an ultra-tight turning radius for tight alleyways, busy urban work zones, and narrow building sites.
  • Oscillating Frame: The center hitch joint also lets the front and rear halves twist independently. Over bumps, rocks, or steep slopes, all four wheels stay firmly on the ground. This keeps traction steady, reduces frame strain, and prevents tip-overs on uneven earth.
  • Heavy-Duty Swivel Skip: Built from thick, wear-resistant steel, the storage bed easily holds sharp gravel, wet mud, or heavy concrete. Many models feature a 180-degree power-swivel tip system. This lets the operator turn the skip sideways and drop materials directly into trenches or along walls without turning the entire truck.

Primary Uses and Job Site Applications

By pairing a 6-ton payload with a compact frame, this mini dumper excels across several demanding industries:

  • Urban Building and Demolition: Compact enough to pass through tight back alleys and single-lane road closures, removing heavy debris from city job sites where full-sized dump trucks cannot fit.
  • Utility Construction and Trench Backfilling: Drives parallel to open utility trenches and rotates its skip 90 degrees to drop sand or gravel straight into the ditch, speeding up pipeline and cable laying.
  • Landscaping and Grounds Work: Wide, low-pressure flotation tires spread the machine's weight evenly. This protects topsoil, prevents deep mud ruts, and saves landscape crews from costly lawn repairs.

Key Operational and Financial Benefits

  • Higher Daily Output: Smaller 1-ton or 3-ton dumpers slow down work because they require too many trips. Upgrading to a 6-ton unit moves twice the material per cycle, keeping your excavators loading continuously.
  • Lower Maintenance Costs: Driving over rough ground causes extreme frame twisting in standard rigid vehicles. The mini dumper's oscillating hitch absorbs these forces, preventing frame cracks, reducing axle wear, and extending machine life.
  • Operator Safety and Comfort: Built-in Roll-Over (ROPS) and Falling-Object (FOPS) protective structures keep drivers safe. Elevated seats provide a clear 360-degree view, while smooth controls reduce driver fatigue.

Overview

The 6-ton articulated mini dumper is an essential asset for modern construction, utility, and landscaping teams. By combining a 6-ton payload capacity with a flexible, bending frame, it easily handles job sites where large trucks simply cannot operate.

Frequently Asked Questions

1. What is the difference between a mini dumper and a standard dump truck?

A mini dumper is much smaller and lighter than a standard dump truck. Instead of turning with front wheels like a car, an articulated mini dumper bends at a middle joint to turn. This gives it a much tighter turning radius and lets it operate safely on soft dirt, narrow walkways, and crowded job sites.

2. How much material can a 6-ton mini dumper hold by volume?

Depending on the model and material density, a standard 6-ton skip holds roughly 4.0 to 4.5 cubic yards of heaped material (such as gravel, topsoil, or loose dirt).

3. Why is a 180-degree swivel skip useful?

A swivel skip allows the bed to rotate 90 degrees to the left or right before dumping. This means operators can drive alongside a trench, wall, or hole and unload material directly to the side without having to turn the whole vehicle around.

4. What excavator or loader size pairs best with a 6-ton mini dumper?

To fill the skip efficiently in 3 to 5 passes, pair a 6-ton mini dumper with a 5-ton to 8-ton compact excavator or a compact wheel loader with a bucket capacity around 1.0 to 1.5 cubic yards.
