45-Ton Articulated Dump Trucks: Your Guide to Heavy Off-Road Haulers
Finding smooth, paved roads on a construction site is rare. When job sites turn into thick mud, loose sand, or steep unpaved slopes, standard dump trucks lose their grip and stall out.

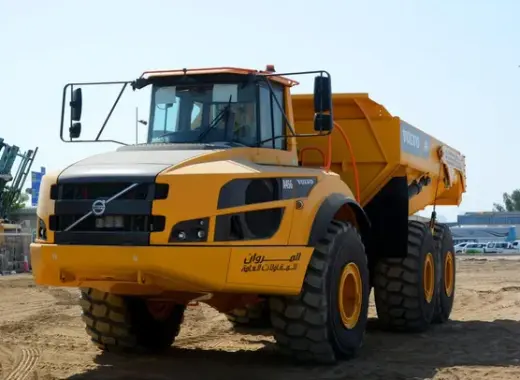

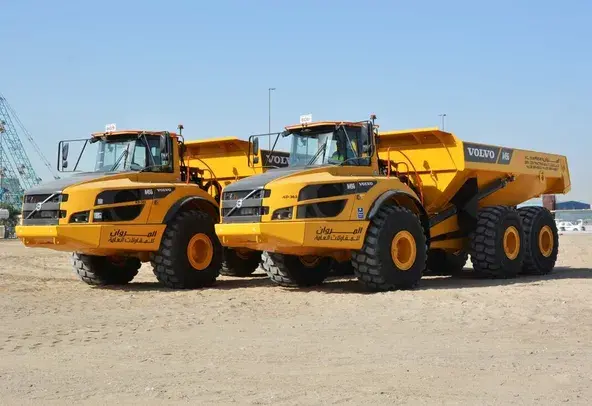

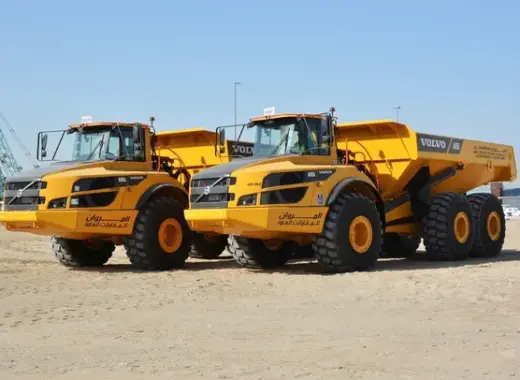

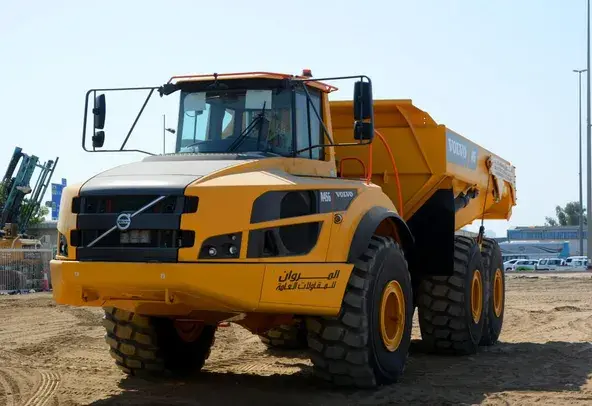

That is where 45-ton articulated dump trucks (ADTs) come in. Weighing around 70,000 pounds empty and hauling up to 90,000 pounds (45 US tons) of material, this machine class is the largest and most powerful type of articulated hauler you can buy.
How Articulated Dump Trucks Work
The big difference between an ADT and a standard truck is its two-piece frame. Standard trucks use one solid frame from front to back. An ADT connects the front cab to the rear dump bed with a flexible center joint called an oscillating hitch.
Controlled by hydraulic steering cylinders, this joint lets the front and back of the truck twist separately. As the truck drives over deep ruts or rocks, all six wheels stay flat on the ground. This gives the truck steady 6x6 traction, prevents frame damage, and keeps the operator safe.
Where 45-Ton ADTs Work Best
Because they handle rough ground so well, 45-ton ADTs work on the toughest industrial sites:
- Highway Projects: Moving tons of dirt and rock out of excavation cuts when temporary roads are steep and muddy.
- Building Sites: Driving over soft soil and swampy ground without sinking or destroying the dirt underneath.
- Mines and Quarries: Hauling heavy rock out of deep pits, even after heavy rains turn steep roads slick.
- Wetland Cleanup: Moving wet mud and sediment safely using wide tires that spread out the weight.
Top Benefits of a 45-Ton ADT
- Great All-Weather Traction: The 6x6 drive system keeps working in deep mud, sand, and snow. You do not have to stop work when bad weather hits.
- High Capacity, Low Ground Pressure: Wide tires spread the heavy 90,000-pound load over a large area. This protects soft ground and saves money on site repairs later.
- Tight Turning Ability: The truck turns by bending at the middle joint instead of turning its front wheels. This gives it a small turning circle for tight spaces.
- Safe Downhill Braking: Going down steep hills with a full load is dangerous. Built-in engine brakes and wet disc brakes slow the truck automatically without overheating.
- Onboard Weight Sensors: Built-in sensors show the exact load weight in real time. This keeps drivers from carrying too little or overloading the truck.
Overview
The 45-ton articulated dump truck is an essential machine for major mining, construction, and cleanup jobs. By pairing a flexible two-piece frame with smart all-wheel drive, it moves heavy loads across terrain that stops other trucks completely.
Whether you are hauling wet dirt across a marsh or moving blasted rock out of a quarry, the 45-ton ADT gives you the power, safety, and speed to finish big jobs on time.
Frequently Asked Questions
1. What is the difference between a 40-ton and a 45-ton articulated dump truck?
A 45-ton ADT carries about 10% more payload per trip than a 40-ton model. While it needs a slightly larger excavator to load it efficiently, it moves more material in fewer trips, saving time and driver costs on large job sites.

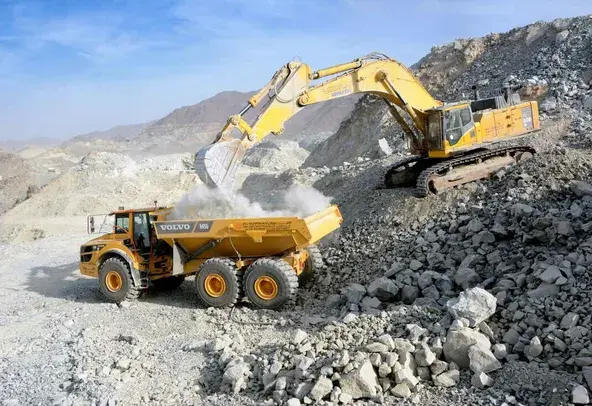

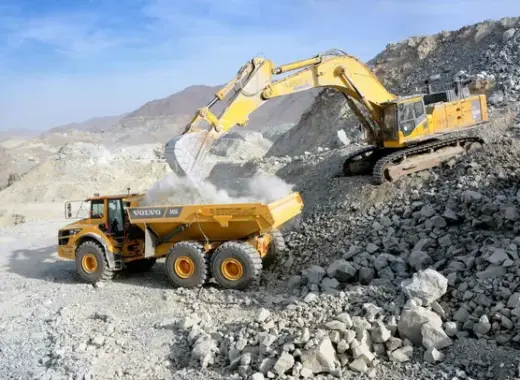

2. What loader or excavator size should you pair with a 45-ton ADT?
To fill the dump bed quickly in 4 to 6 passes, pair a 45-ton ADT with a 50 to 70-ton hydraulic excavator (4.0 to 6.0 cubic yard bucket) or a large wheel loader with a 6.0 to 7.5 cubic yard bucket.
3. How does the middle hitch joint stop the truck from tipping over?
The center oscillating hitch lets the front cab and rear bed twist up to 45 degrees away from each other. If the heavy dump bed leans on uneven ground or while dumping, the cab stays flat and stable. This helps the driver keep full steering control and prevents tip-overs.
4. How much material can a 45-ton ADT hold by volume?
A standard 45-ton ADT body holds roughly 31 to 35 cubic yards of heaped material, depending on how dense or wet the earth is.
